A landing valve (or hydrant valve) is a control valve in a building’s fire protection system that allows firefighters to connect hoses and regulate water flow to fight fires efficiently.

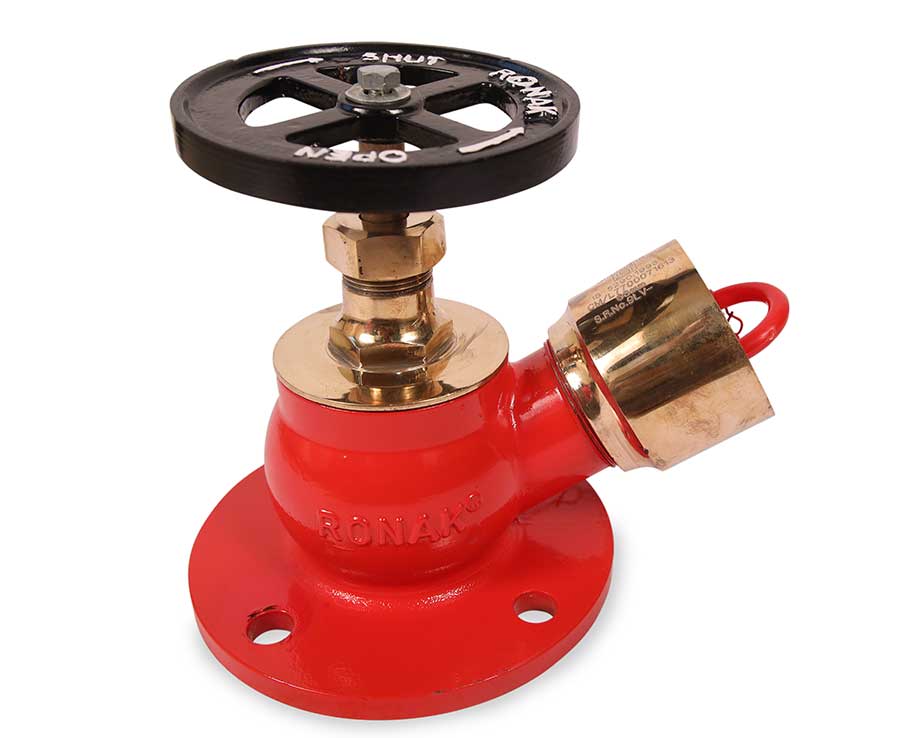

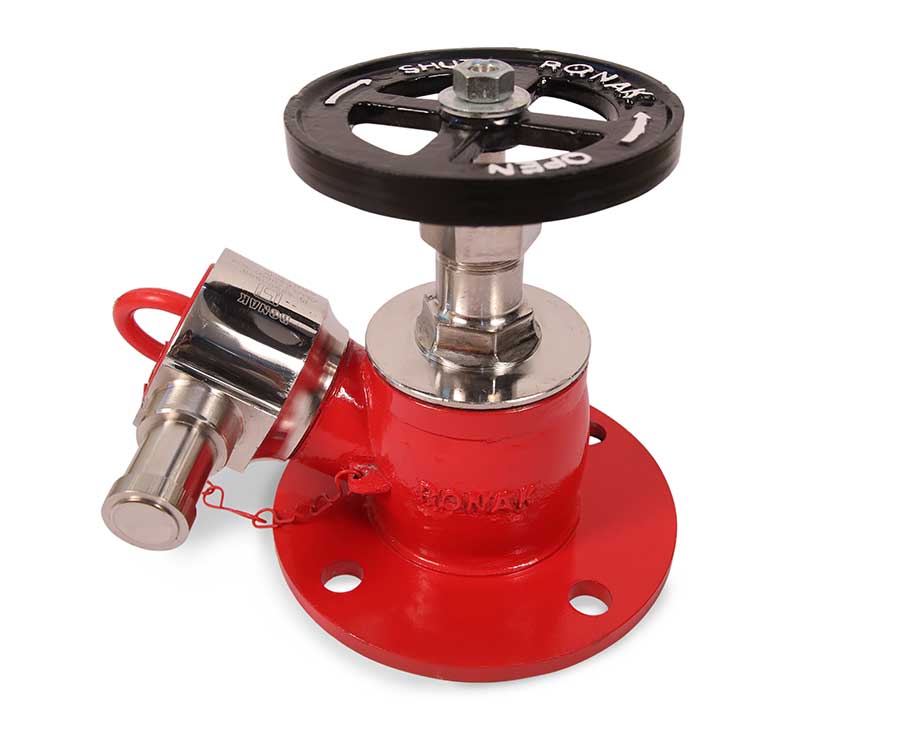

Landing Valve (Type A) is a fire-fighting hydrant valve designed to control water flow in standpipe systems. It features a single outlet and is commonly installed in fire hydrant networks for quick hose connection during emergency firefighting operations.
Gun MetalStainless Steel| Item | Gun Metal | Stainless Steel |
|---|---|---|
| Body, Bonnet Assembly | LTB2 – IS:318 | Stainless Steel IS:3444 |
| Valve Spindle | Brass Rod – IS:319/320 | Stainless Steel IS:6603 |
| Cast Iron Wheel | IS:210 | IS:210 |
| Rubber Washer | IS:937 (Type‑A) | IS:937 (Type‑A) |
| Spring | Phosphor Bronze Wire – IS:7608 | Stainless Steel – IS:6528 |
| Gland packing – Asbestos Thread | IS:4687 (Type‑3) | IS:4687 (Type‑3) |

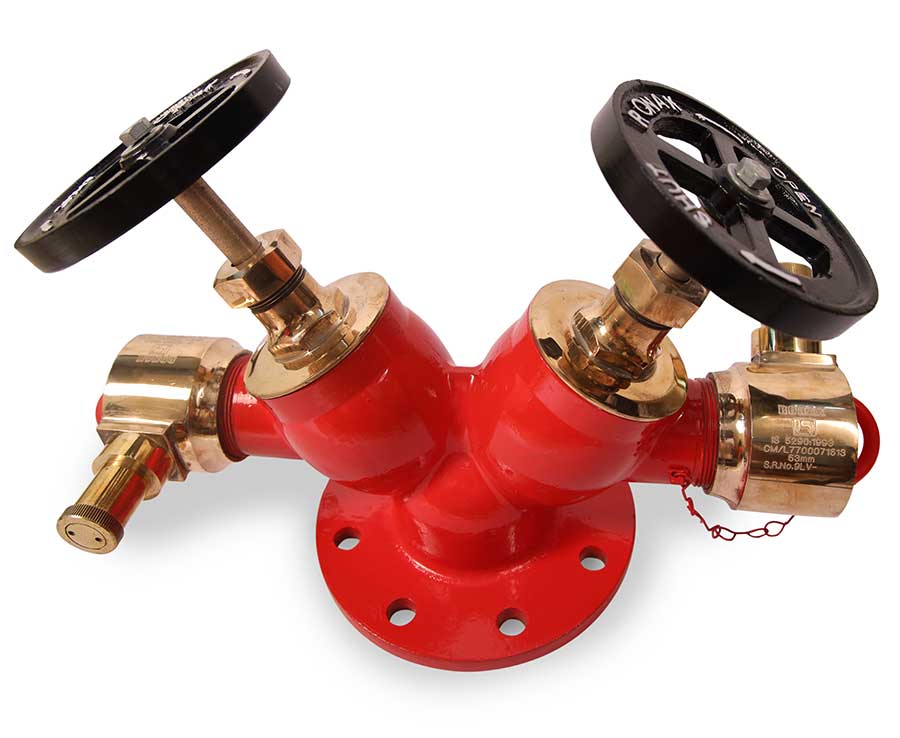

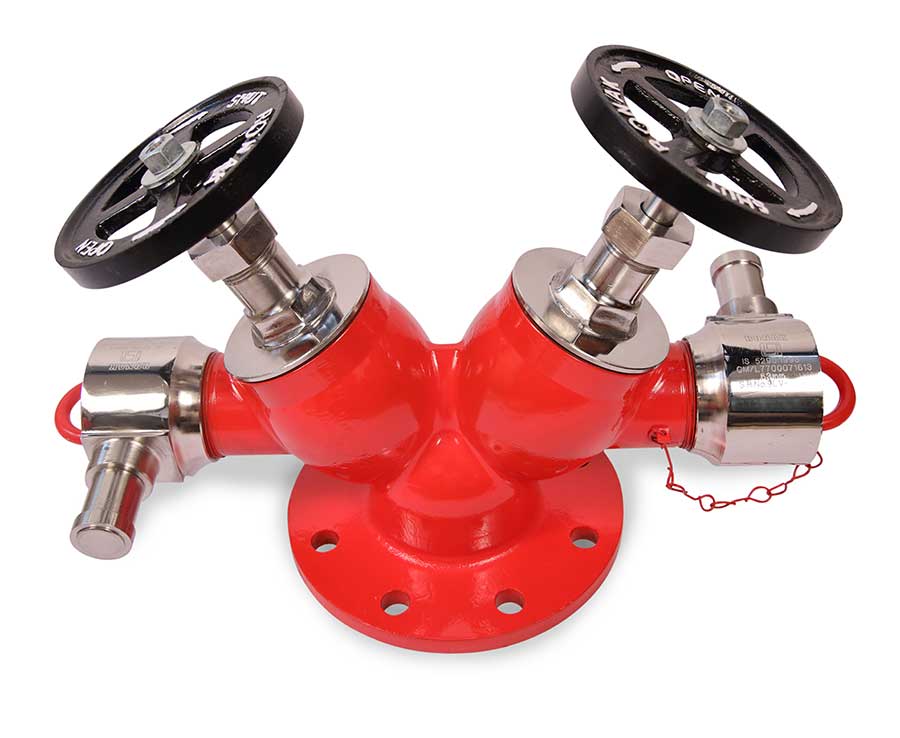

Landing Valve (Type B) is a dual-outlet fire-fighting hydrant valve that allows two simultaneous hose connections. It provides efficient water supply control in high-risk areas where multiple fire hoses may be required at the same time.
Gun MetalStainless Steel| Item | Gun Metal | Stainless Steel |
|---|---|---|
| Body, Bonnet Assembly | LTB2 – IS:318 | Stainless Steel IS:3444 |
| Valve Spindle | Brass Rod – IS:319/320 | Stainless Steel IS:6603 |
| Cast Iron Wheel | IS:210 | IS:210 |
| Rubber Washer | IS:937 (Type‑A) | IS:937 (Type‑A) |
| Spring | Phosphor Bronze Wire – IS:7608 | Stainless Steel – IS:6528 |
| Gland packing – Asbestos Thread | IS:4687 (Type‑3) | IS:4687 (Type‑3) |
